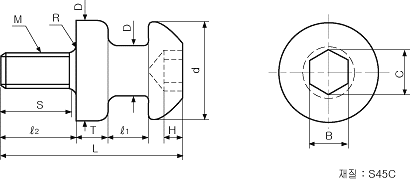

■ 규격표
|
TYPE |
M × P |
D |
d |
ℓ₁ |
ℓ₂ |
S |
T |
L |
R |
H |
B |
C |
kgF/1P |
CHN |
12 × 1.75 |
16 |
36 |
13 |
24 |
20 |
10 |
57 |
1.5 |
6 |
10 |
11.7 |
360 |
16 × 2.0 |
20 |
40 |
18 |
30 |
25 |
13 |
75 |
2 |
9 |
14 |
16.3 |
680 |
20 × 2.5 |
25 |
48 |
20 |
37 |
32 |
16 |
90 |
2 |
9 |
14 |
19.8 |
1060 |
24 × 3.0 |
32 |
58 |
25 |
47 |
40 |
20 |
111 |
2.5 |
13 |
19 |
22.1 |
1530 |
30 × 3.5 |
36 |
68 |
30 |
56 |
48 |
22 |
131 |
3 |
16 |
22 |
25.6 |
2430 |
36 × 4.0 |
40 |
78 |
30 |
68 |
58 |
25 |
148 |
3 |
18 |
27 |
31.4 |
3550 |
|
■ 주문방법
|
TYPE M
수량
CHN 24
8EA
|
|
|
|
|
 |
|
|
